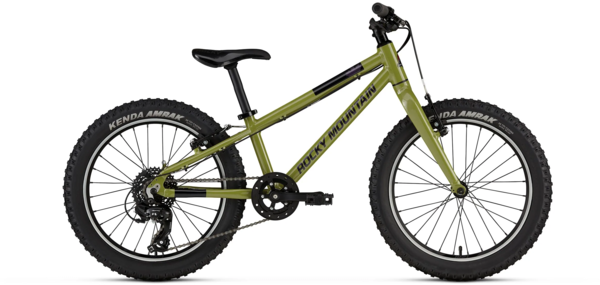

Rocky Mountain Edge Jr 20

Rocky Mountain Edge Jr 20
$579.00
Color: Monster Mash/Blackberry Smoke/Black Dog
Size: One Size
Please select options Unavailable

Details

Available in five wheel sizes and multiple frame sizes, there's an Edge model ready to get them set up right for the ride ahead. Every Edge model is best for kids of any age learning to ride and for mastering the basics.

Sizing:
- Inseam: 432 - 612mm / 17 - 24"

Geometry Chart:
Frame SizeKIDS
Top Tube Horizontal (mm) 470
Head Tube Angle (deg) 68°
Head Tube Length (mm) 115
Seat Tube Angle (deg) 71°
Seat Tube Length (mm) 255
Rear Centre (mm) 350
Bottom Bracket Drop (mm) 15
Reach (mm) 315
Stack (mm) 450
Standover Height (mm) 560

Specs

Frame Rocky Mountain 6061 Alloy Zero Stack Headtube | 12" Run Bike Kid's Geometry Rear Triangle
Fork Fork Rocky Mountain Alloy JR
Rims Rocky Mountain Alloy 12" | 16H
Hubs Rocky Mountain Lock Nuts
Spokes 2.0 Steel
Tires F: VeeTire Crown GEM 12x2.25 // R: VeeTire Crown GEM 12x2.25
Handlebars Rocky Montain 25.4 For 19mm Grips
Tape/Grips Rocky Mountain Slide On Kids 19mm
Stem Rocky Mountain 25.4 | 0° Rise | 30mm
Headset Rocky Mountain | Loose Ball Bearings | 1-1/8" Crown Race
Saddle Rocky Mountain Integrated

* Subject to change without notice.
