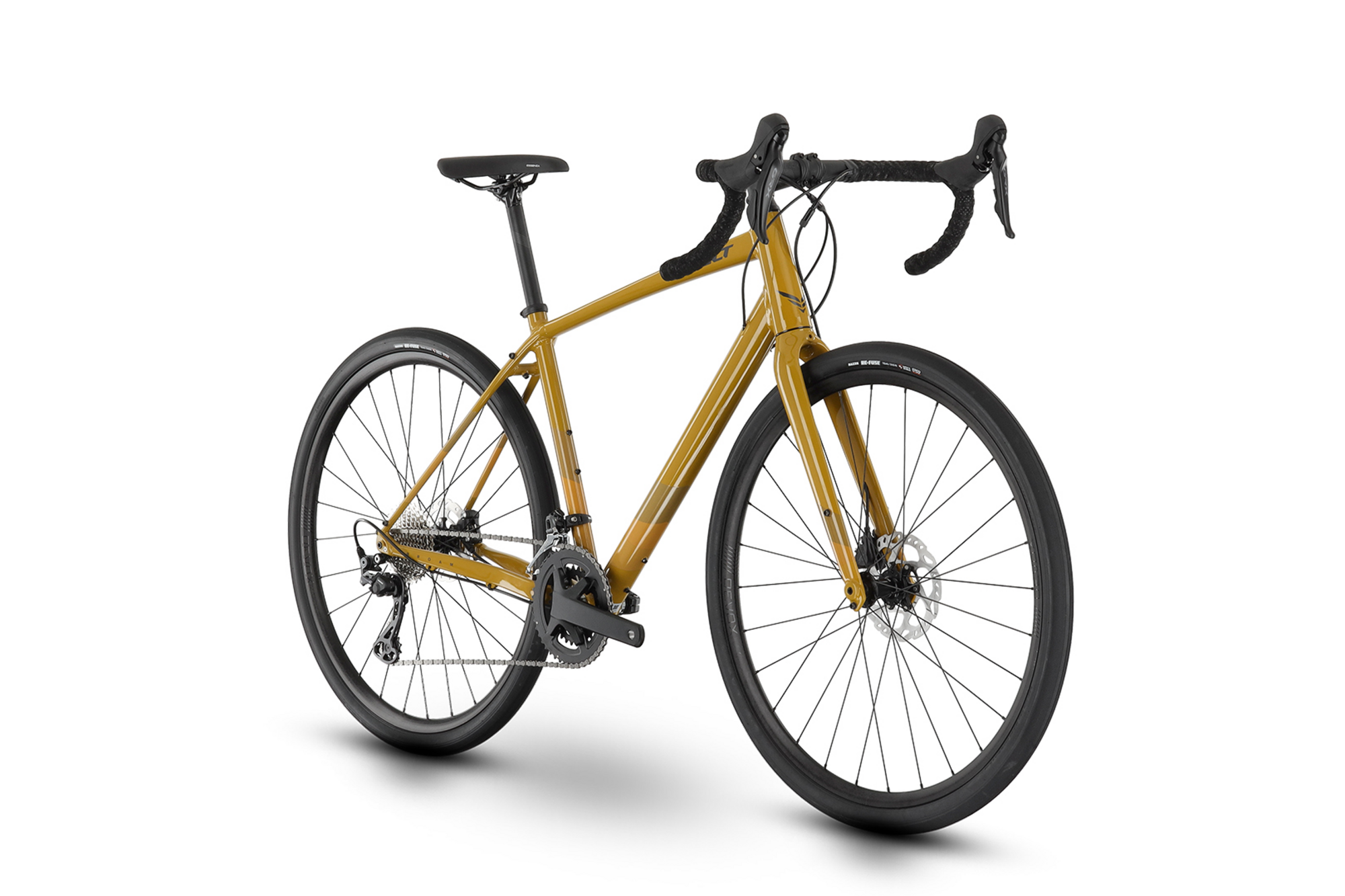

Felt Bicycles BROAM 30

Felt Bicycles BROAM 30
Please select options Unavailable

Details

Our best adventure road bike ever. Rugged and versatile aluminum frame paired with a carbon fork. Ready for any adventure you can envision.

ADVENTURE AWAITS. GO GET IT.
With a high quality aluminum frame and Shimano component group, the BROAM | 30 is a go-to choice for those who want a versatile bike capable of supporting numerous adventures. Able to accommodate racks, fenders, and bags, the BROAM is able to go the distance with bikepacking or long overland rides. Comfortable on paved and gravel roads, the BROAM offers an exciting mix for all levels of riders.

QUALITY SHIMANO COMPONENTS
The mix of Shimano components on the BROAM | 30 offers a wide 2x gear range that'll offers versatility for the flats, uphills, and downhills while maintaining the ease-of-use for which Shimano is known.

VERSATILE AND CAPABLE
The BROAM frame offers various mounting points for bags, fenders, and racks. Whether working as an everyday commuter or kitted out for a long-distance adventure, you'll have the versatility at-hand.

OPTIMIZED TIRE PERFORMANCE
The Maxxis Refuse tires offer great flat protection with the Max Shield technology and are offered in a wide 700x40mm version. Wherever your ride takes you, you'll have more comfort, more control, more adventure.

Sizes:
475154565861
(A) Top Tube Length530 mm 535 mm555 mm570 mm580 mm595 mm
(B) Seat Tube Length410 mm 435 mm460 mm485 mm515 mm545 mm
(C) Seat Tube Angle74 ° 74 °74 °73 °73 °73 °
(D) Head Tube Length125 mm 145 mm165 mm180 mm200 mm220 mm
(E) Steering Angle70.5 ° 70.5 °71 °71 °71 °71 °
(F) Chain Stay Length450 mm 450 mm450 mm450 mm450 mm450 mm
(G) Wheel Base1039 mm 1045 mm1056 mm1066 mm1076 mm1092 mm
(H) Standover Height688 mm 713 mm720 mm762 mm790 mm818 mm
(I) BB-Drop72 mm 72 mm72 mm72 mm72 mm72 mm
(K) Fork Offset50 mm 50 mm50 mm50 mm50 mm50 mm
(L) Stack551 mm 570 mm591 mm605 mm624 mm643 mm
(M) Reach372 mm 371 mm380 mm385 mm389 mm399 mm
(N) Stem Length80 mm 90 mm100 mm100 mm110 mm120 mm
(O) Crank Length165 mm 170 mm172.5 mm172.5 mm175 mm175 mm
Sizes:
485154565861
RIDER HEIGHT

152.4 - 167.6 cm

5’0” - 5’5”

167.6 - 172.7 cm

5’5” - 5’8”

172.7 - 177.8 cm

5’8” - 5’10”

177.8 - 182.8 cm

5’10” - 6’0”

182.8 - 187.9 cm

6’0” - 6’2”

187.9 - 195.5 cm

6’2” - 6’5”

RIDER INSEAM

71.2 - 74.9 cm

28.0” - 29.5”

75.1 - 76.2 cm

29.6” - 30.0”

77.9 - 82.0 cm

30.7” - 32.3”

81.0 - 85.0 cm

31.9” - 33.5”

84.0 - 87.1 cm

33.1” - 34.3”

87.3 - 91.1 cm

34.4” - 35.9”

Specs

Pedals Sold Seperately
Fork Felt Gravel, UHC Performance carbon fiber with aluminum steerer tube
Stem Devox StemR.A2
Chain Shimano CN-HG601
Frame Felt BROAM, SuperLite aluminum
Tires Maxxis Refuse, 700x40 mm,
Brakes Shimano BR-RX400, 2-piston, Hydraulic disc brake
Rotors Shimano SM-RT70, 140 mm, Center lock
Saddle Selle Royal Essenza Gel
Wheels Devox WheelRDS.A1, Tubeless ready, Center lock, 12x100/12x142 mm
Headset IS (NO.42)
Crankset Shimano GRX, FC-RX610, 46/30 T
Seatpost Devox Post.A3, 300 mm
Shifters Shimano GRX, ST-RX610
Handlebars Devox DBar.A2 GXA 31.8 mm, 420 mm
Rear Derailleur Shimano GRX, RD-RX610, 24-S
Cassette/Freewheel Shimano CS-HG700, 11-34 T
Front Derailleur Shimano GRX, FD-RX810

* Subject to change without notice.
