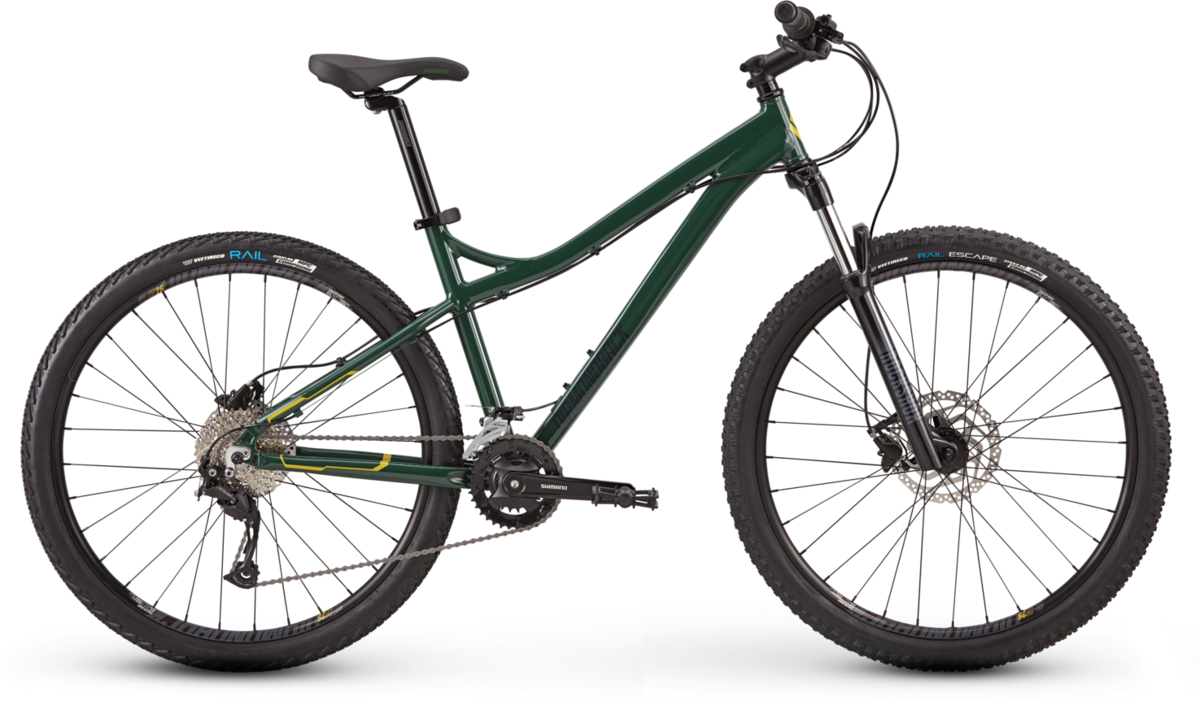

Diamondback Lux 2

Diamondback Lux 2
This item is currently not available.

Details

Enlighten yourself on the Lux 2, a hardtail for smaller riders with hydraulic disc brakes that lets you discover a whole new world.

If you're looking to dive into the world of mountain biking, the Diamondback Lux 2 is a great place to start. This mountain bike is equipped with a low-slung top tube for extra standover clearance to make it easier to maneuver. The saddle keeps you pedaling comfortably, while the 27.5-inch wheels offer quick handling for a nimble feel. With its thoughtful component package selected for long-wearing performance, this is a trail bike to learn and grown on. Take on new adventures and new challenges out on the trail with the Lux 2.

bike frame with labeled dimensions
Bike Sizes:
Small (5'3" - 5'5")Medium (5'5"-5'7")Large (5'7" - 5'10")
A. Reach 393.0 mm 416.0 mm 427.0 mm
B. Stack 526.0 mm 546.0 mm 555.0 mm
C. Standover 639.0 mm 647.0 mm 664.0 mm
D. Effective Top Tube 555.0 mm 580.0 mm 595.0 mm
E. Head Tube Angle 68.0 ° 68.0 ° 68.0 °
F. Head Tube Length 95.0 mm 105.0 mm 115.0 mm
G. Seat Tube Angle 73.2 ° 73.3 ° 73.4 °
H. Seat Tube Length 380.0 mm 430.0 mm 480.0 mm
I. Bottom Bracket Height 304.0 mm 304.0 mm 304.0 mm
J. Bottom Bracket Drop 44.0 mm 44.0 mm 44.0 mm
K. Fork Rake/Offset 46.0 mm 46.0 mm 46.0 mm
M. Wheelbase 1070.0 mm 1096.0 mm 1112.0 mm
O. Chainstay Length 430.0 mm 430.0 mm 430.0 mm
Stem Length 75.0 mm 90.0 mm 90.0 mm
Handlebar Width 740.0 mm 740.0 mm 740.0 mm
Crank Length 170.0 mm 170.0 mm 175.0 mm
Seatpost Length 350.0 mm 350.0 mm 350.0 mm
Travel 100.0 mm 100.0 mm 100.0 mm

Specs

Frame Lux 27.5 Double Butted 6061-T6 Aluminum Super Low TT for Increased Clearance, w/ Formed Top / Down Tube
Fork Rock Shox Judy TK 27.5", 100mm Travel, Coil Spring w/Preload Adjust, 30mm Stanchions, Magnesium Lower, Aluminum Crown, Quick Release
Rims 32h Diamondback DP25 Doublewall
Hubs Front: 32h Aluminum w/ CNC Disc Mount; 100mm
Rear: 32h Aluminum 9mm Quick Release Cassette w/ CNC Disc Mount, 141mm boost spacing
Spokes 14g Stainless Steel
Tires Vee Tire Rail Escape Front 27.5x2.35 Rail Rear 27.5x1.95
Bottom Bracket Sealed Cartridge
Crankset Shimano MT-10 36/22T
Shifters Shimano Altus, 2x9 Speed Rapidfire
Front Derailleur Shimano Alivio, Side Swing, Front Pull, Direct Mount for 2x9
Rear Derailleur Shimano Alivio M3100, Shadow Plus, 9 Speed
Cassette/Freewheel Shimano HG200, 9 Speed Cassette, 11-32T
Chain KMC Z9, 9 Speed
Brakes Shimano BR-M200 Hydraulic Disc, w/ 180mm Front /160mm Rear Rotors
Brake Levers Shimano BR-M200 Hydraulic Lever w/ Reach Adjust
Handlebars Diamondback, 740mm Wide, 15mm Rise, 31.8 Bar Bore
Tape/Grips DB "Flanged" 135mm Silicone
Stem DB 3D Forged, 7° Rise, 31.8 Bar Bore
Headset 1 1/8" Zero Stack
Seatpost DB Aluminum Micro Adjust, 30.9mm
Saddle DB Performance MTB Saddle
Pedals DB Aluminum Platform
Accessories & Extras Tool Kit

* Subject to change without notice.
